Recon Cantilever Scope Mount Family

Out of stock

(5 stars) - 3 reviews

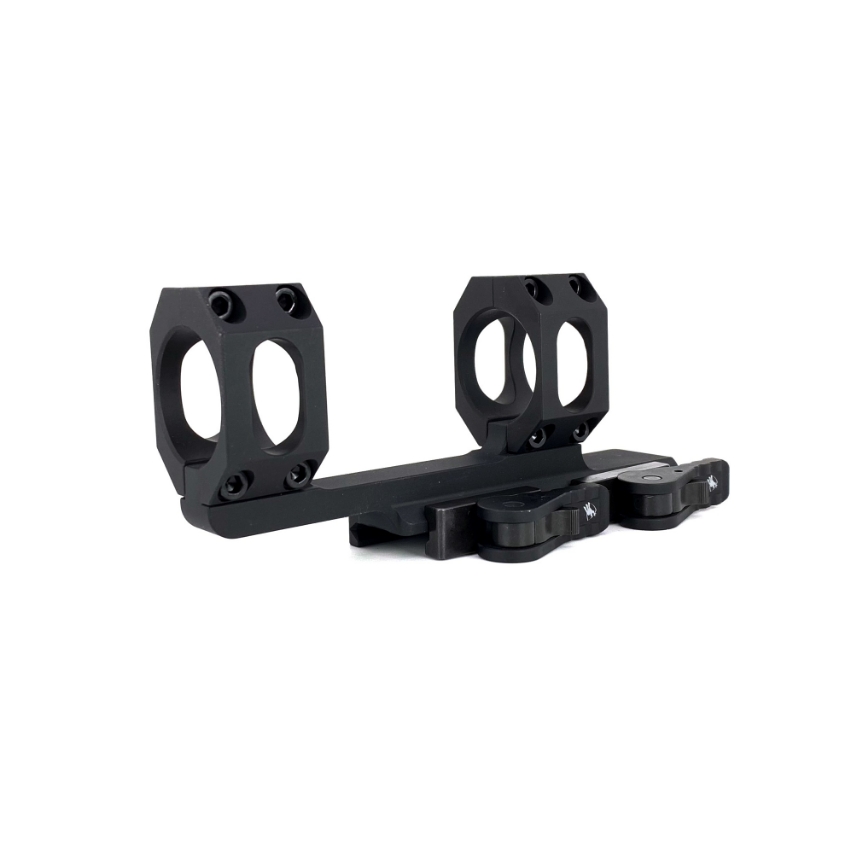

The AD-RECON mount is made for putting high power glass onto a flattop style AR-15. The AD-Recon works with scopes with Objective Housings as large as 56 mm. Offered in a variety of ring sizes, the 2" cantilever throws the scope out front, allowing you to get the right eye relief. It is precision machined from 6061 T6 aluminum and finished in hard coat T3 Mil-Spec anodize. It features the Patented QD Auto Lock™ Lever system to accommodate both in spec and out of spec rail systems.

Mount Height *
Color *
Ring Size *
Legacy Lever Style *
Built-in MOA *

Qty:

$253.58

Fast Shipping

Made In USA

Recon - M is the mid-height mount that we offer, the centerline height with 30mm rings is 1.64" and 1.7" with 34mm rings.

Recon - H is designed to be used in conjunction with a Laser Sighting System to bring the Objective Housing high enough to clear the laser, or for shooters requiring a higher cheek weld for heads up shooting. This is the tallest mount that we offer.

Mount Base Part Numbers

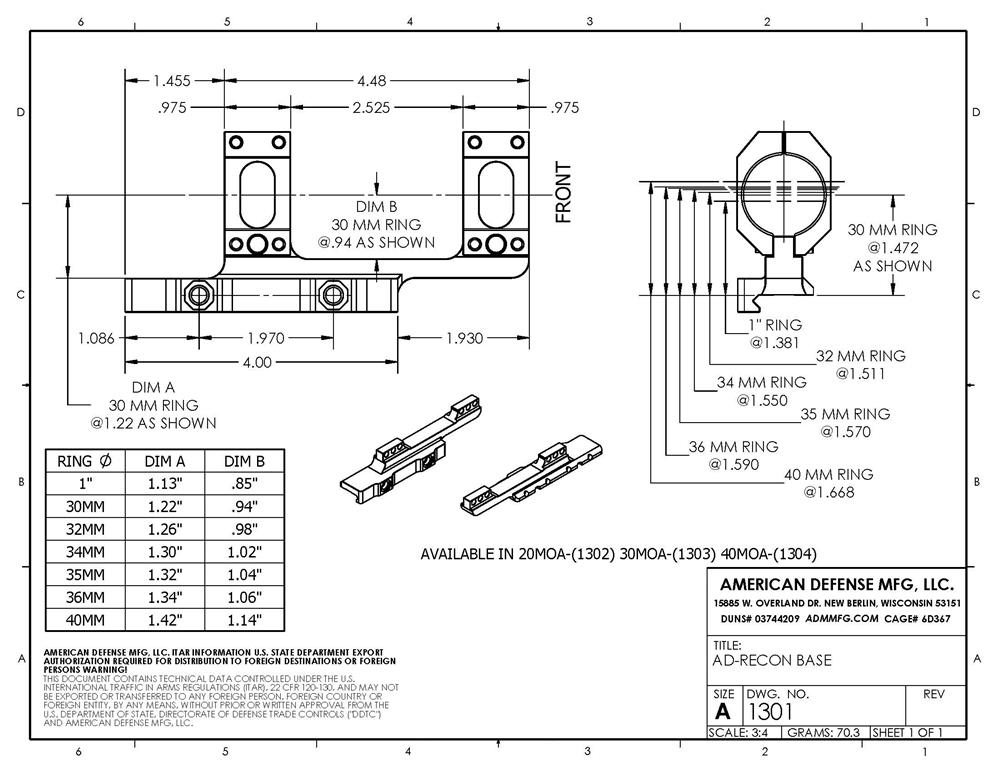

1301 Recon (0 MOA) 1.5"
1302 Recon (20 MOA) 1.5"
1303 Recon (30MOA) 1.5"

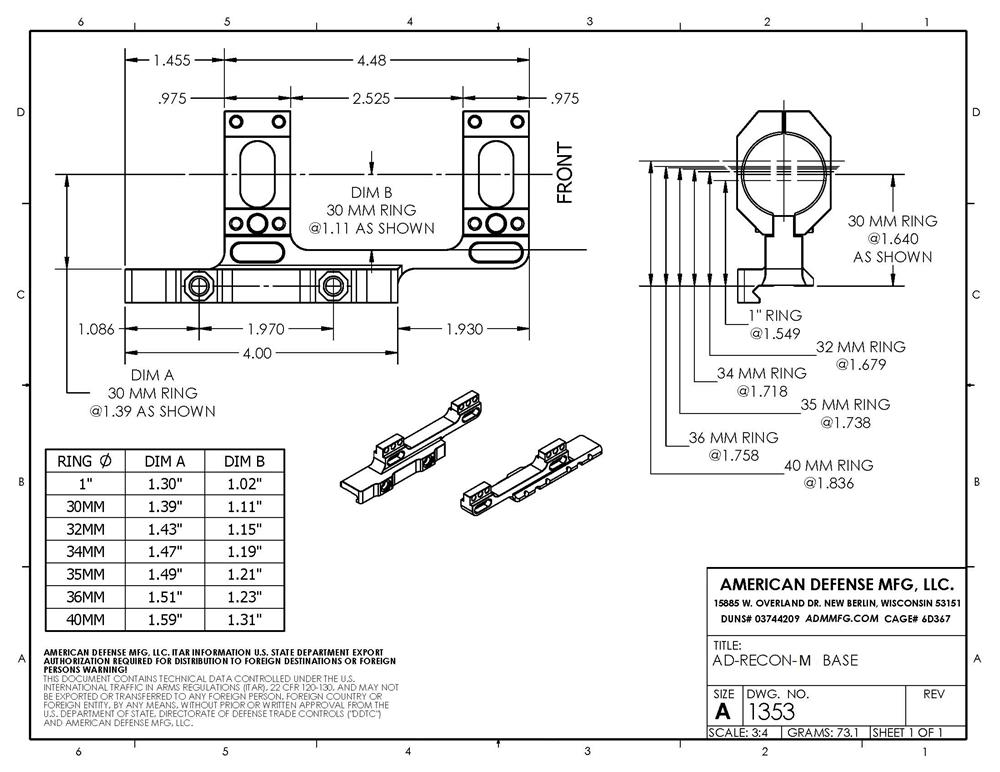

1353 Recon-M (0 MOA) 1.7"

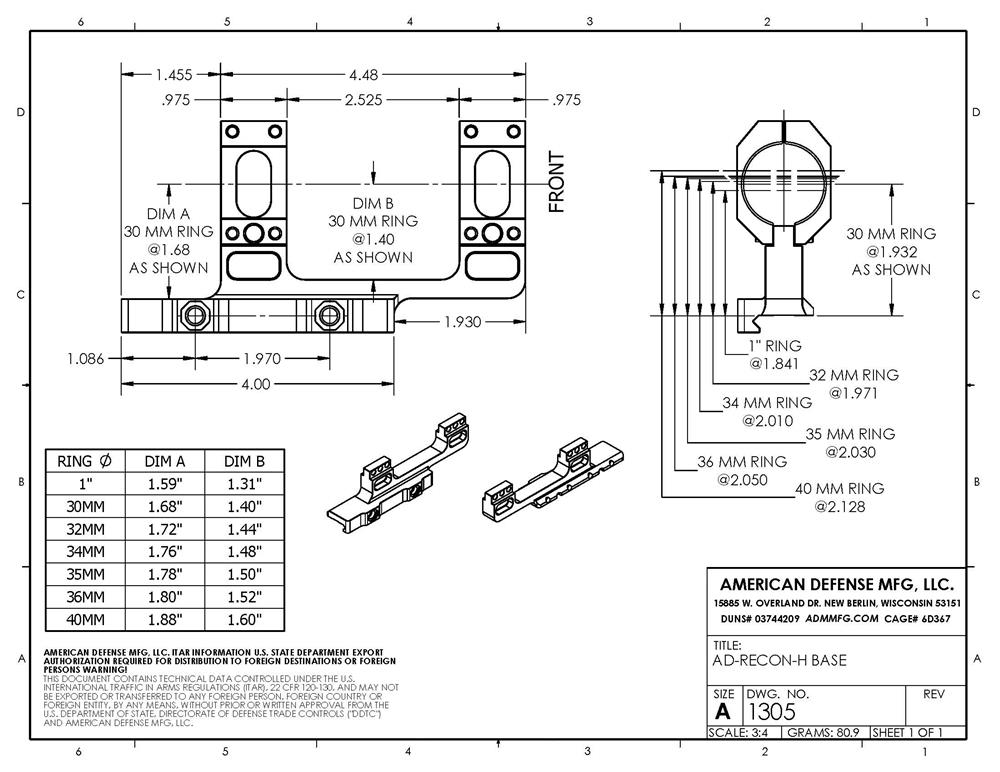

1305 Recon-H (0 MOA) 1.93"

***not all configurations listed are available

Ensure you are verifying the appropriate ring size for the optic this mount is being used for. Customer is responsible for all return shipping costs for item exchanges.

Overview
Related Items
Reviews
Dimensions

Features

The AD-RECON mount features the Patented QD Auto Lock™ Lever system which has the following advantages:

Does not require proprietary tools for adjustment.
Can be adjusted with your finger or a flat blade screwdriver.
Lever can be configured to lock to the front or the rear.
Superior clamping surface to insure maximum rail engagement.

Materials & Construction

The AD-RECON mount is precision CNC machined from a block of 6061 T6 aluminum and finished in hard coat type 3 Mil-Spec anodize for a rock hard lasting finish.

Precision machined from 6061 T6 Aluminum.
Hard coat anodized for a lifetime of performance.
Fully adjustable to fit both in spec and out of spec rail systems.
American Defense MFG, LLC. products feature a lifetime warranty.
Features the Patented QD Auto Lock Lever system.
Made with pride in the U.S.A.

Specifications

The AD-RECON mount has the following specifications:

Weight: 8.4 ounces

Add your review

Precision made scope mount

The quality and the insane amount of engineering that is this mount is mind boggling. Take your time and follow the steps, you will not be disappointed. Worth every penny which is why I didn't consider any other AR scope when I needed another one. Buy with confidence!!

This will work on left eject uppers.

I have a left ejecting upper because I shoot off of my left shoulder most of the time. When I went to clamp this mount onto the upper the deflector would not allow the back quick mount to lock into place at the location that was the best for my scope. At first I thought that I could remove the lever and grind off the lower tab to clear the deflector. Upon further study I saw that I could flip the offending lever 180 degrees and have it lock into place. I removed the levers and flipped them and now there is no interference with the locks. This is a great mount, solid lock up and great quality.

Best true QD mount

In classic ADM form, this mount is absolutely fantastic. Best true QD, best return-to-zero, rock solid construction, and looks awesome!!
