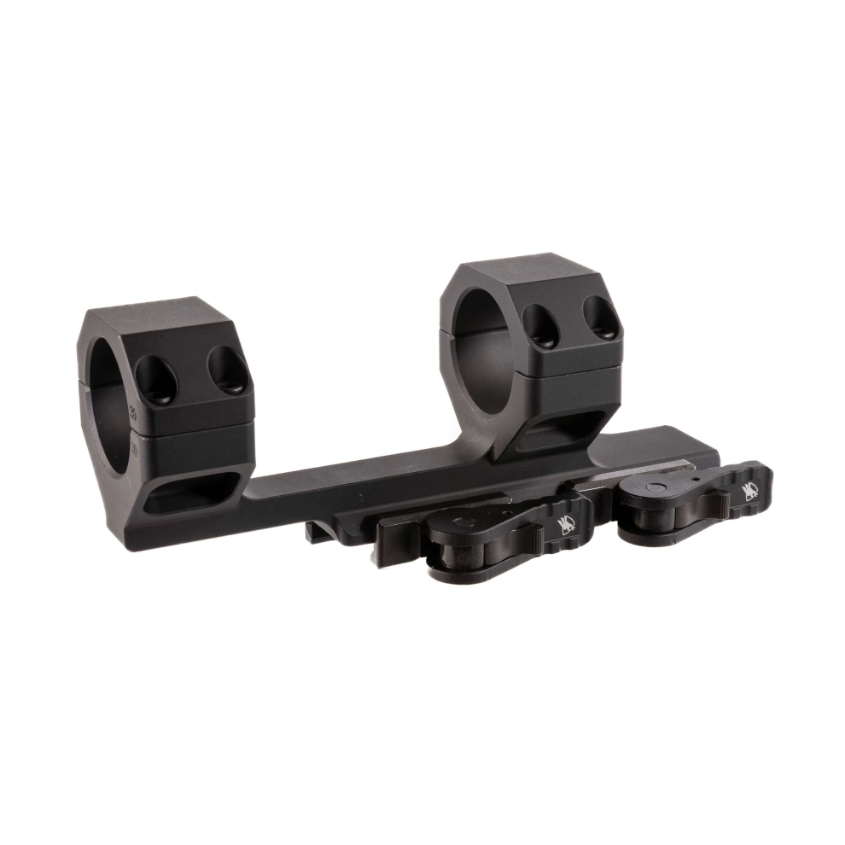

AD-Delta-C (Cantilevered) Mount Family

Out of stock

(5 stars) - 3 reviews

The AD-DELTA-C mount is made for putting high power glass onto a SCAR or flattop style AR15/AR10. The AD-DELTA-C is an offset scope mount with 2 inches of eye relief built in. Optic centerline height is 1.5" for 30mm rings. It is precision machined from 6061 T6 aluminum and finished in hard coat T3 Mil-Spec anodize. Horizontal rings. It features the Patented QD Auto Lock(tm) Lever system to accommodate MOST 1913 picatinny style rails.

Mount Height *
Color *
Ring Size *
Legacy Lever Style *
Built-in MOA *

Qty:

$317.57

Fast Shipping

Made In USA

New For 2024: We have updated the Delta-C Mount design to include weight reducing pockets which removed 1oz of unnecessary weight from the mount.

Mount Base Part Numbers

1415 Delta-C 30mm (0 MOA) 1.5"
1417 Delta-C 30mm (20 MOA) 1.5"
1435 Delta-C 34mm (0 MOA) 1.5"
1436 Delta-C 34mm (20 MOA) 1.5"

1428 Delta-C-M 30mm (0 MOA) 1.7"
1437 Delta-C-M 34mm (0 MOA) 1.7"

1418 Delta-C-H 30mm (0 MOA) 1.93"
1419 Delta-C-H 34mm (0 MOA) 1.93"

***not all configurations listed are available

Overview
Related Items
Reviews

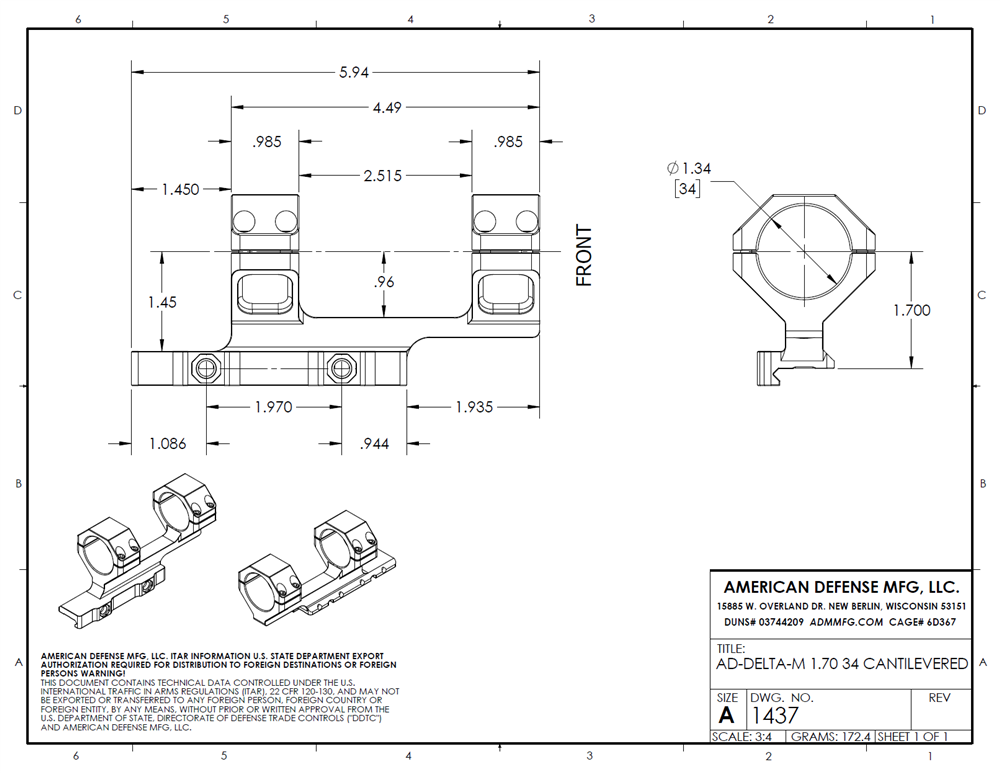

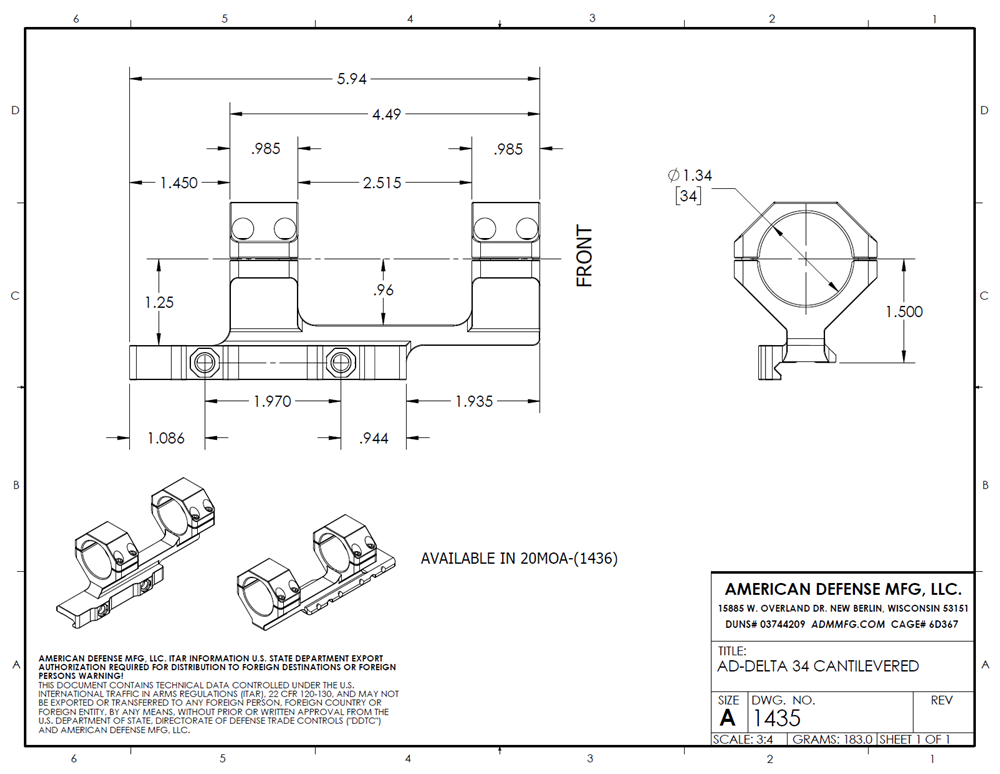

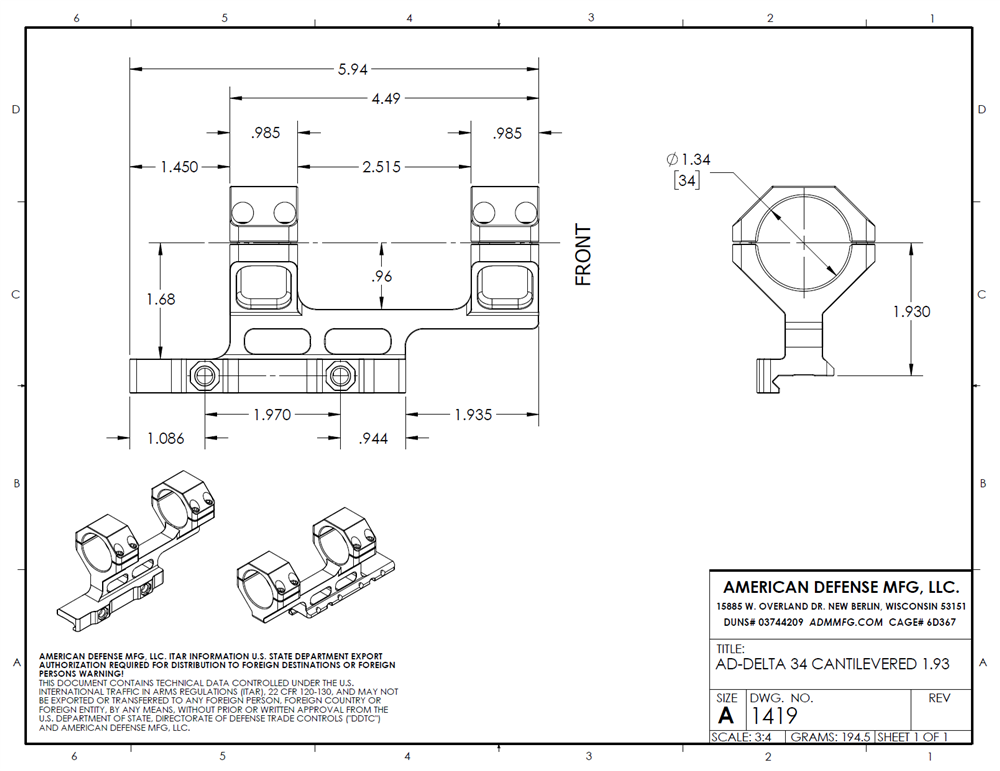

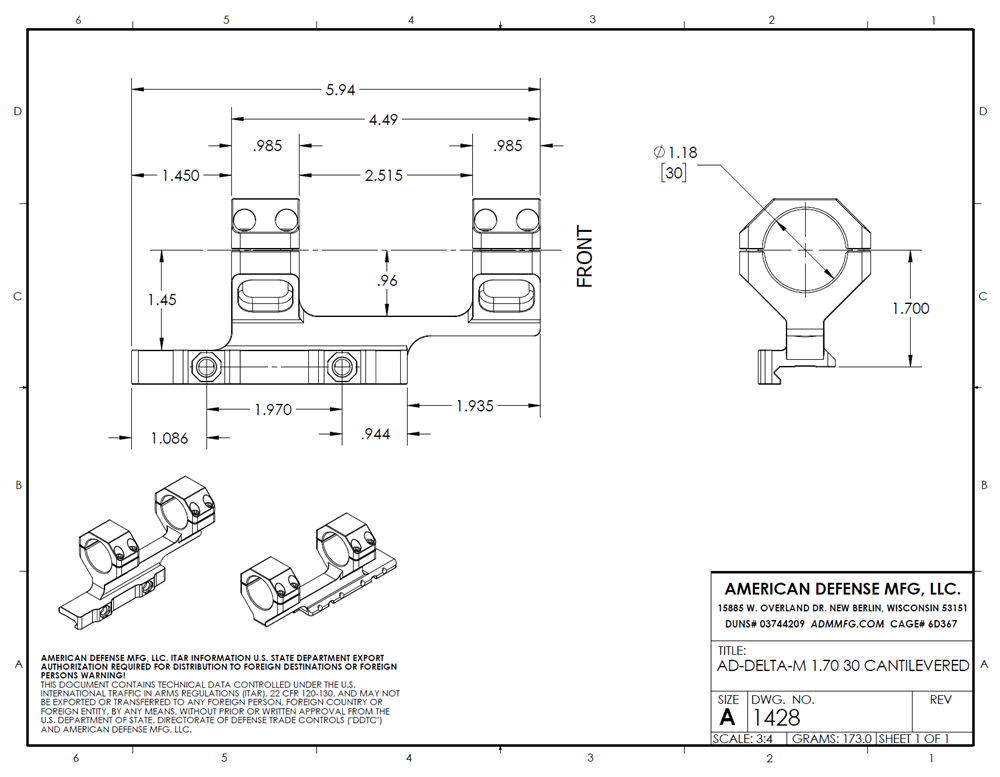

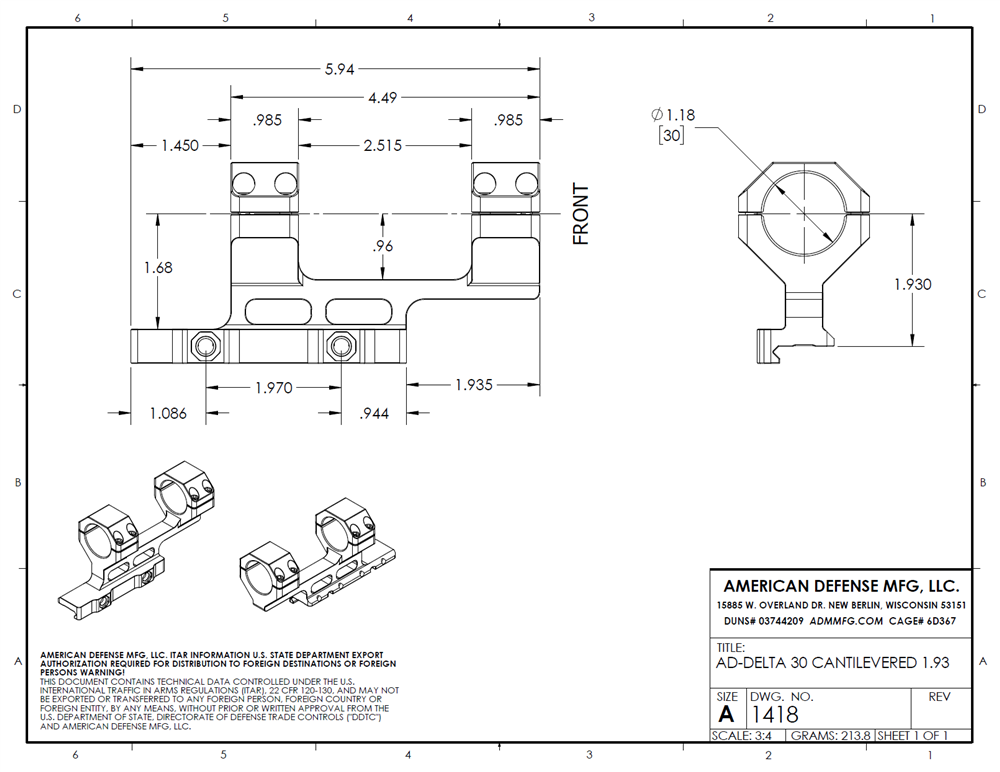

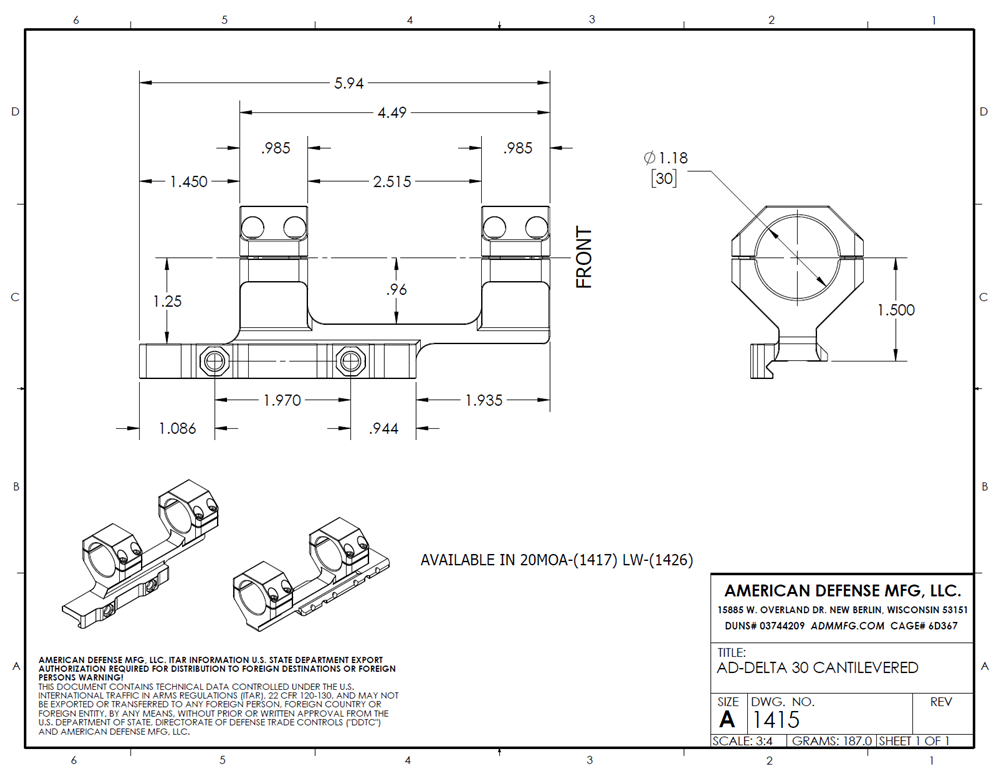

Dimensions

Features

The AD-DELTA-C mount features the Patented QD Auto Lock(tm) Lever system which has the following advantages:

Does not require proprietary tools for adjustment.
Can be adjusted with your finger or a flat blade screwdriver.
Lever can be configured to lock to the front or the rear.
Superior clamping surface to insure maximum rail engagement.

Materials & Construction

The AD-DELTA-C mount is precision CNC machined from a block of 6061 T6 aluminum and finished in hard coat type 3 Mil-Spec anodize for a rock hard lasting finish.

Precision machined from 6061 T6 Aluminum.
Hard coat anodized for a lifetime of performance.
Fully adjustable to fit both in spec and out of spec rail systems.
American Defense MFG, LLC. products feature a lifetime warranty.
Features the Patented QD Auto Lock Lever system.
Made with pride in the U.S.A.

Weight

8 oz

OPTIC MOUNT FITMENT CHART

Add your review

Scope mount swap

Removed a 0 MOA Recon to replace it with a 20 MOA Delta and was impressed after doing the swap... Removed the scope and mount, remounted the scope in the Delta, cranked in the extra 20 MOA and headed to the range. And without even doing a simple boresight the first 3 test rounds were only 1 MOA low and 1.5 MOA right... This says everything about the quality of ADM. Getting such a minor POI shift after a complete swap is simply impressive.

Quick and easy

I had this mount for 3 years with no issues. One of the old QD latch stopped locking due to taking it on and off regularly. When I contacted the company they replaced the QD latch with two new and upgraded QD latch super fast! I would highly recommend this product and company to anyone. The new latches are a beast!. I never had any issues with the mount moving even with the bad QD latch. I shoot a .338 lapua mag and the mount is rugged enough to handle the impact of the .338lm recoil.

Quick and easy
